Single Phase | Heavy Duty Continuous Work |
Pump body | Cast iron |
Impeller | Brass/Stainless Steel/Techno-polymer(P.P.O) |
Mechanical Seal | SIC/Ceramic/Graphite |
Motor Housing | Aluminum Alloy |
Shaft | Carbon steel/stainless steel |
Insulation | ClassB/Class F |
Protection | IP44/IP54 |
Cooling | External Ventilation |

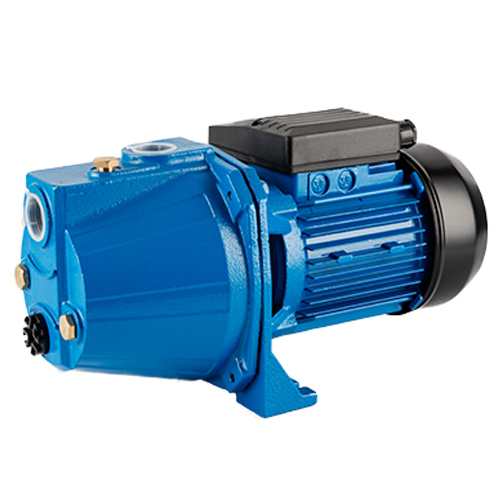

JET-S series cast iron self-priming pumps are mainly used to transfer clean water and other liquid which is similar with water character.It is suitable for industrial and urban water supply,pressurre rise to high building,garden irrigating,long distance water transfer and relevant equipment ect.
Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift up to 9m
Continuous duty
* The normal power standard is 220v 50hz single phase & Three phase 220,380V50hz.
Single phase 230v,240v,127v,110v,115v/60hz models are available on request.
Technical data
