Application
SCM series are single stage centrifugal pumps,can be used to transfer clean water or other similar water in physical and chemical properties .It is suitable for industrial use and urban water supply,pressure boosting for high buildings and fire system,garden irrigation,long-distance water transfer,heating ventilation and air controlling,circulation and pressure boosting for cold and hot water,and supporting equipment etc.
Operation Conditions
Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift up to 9m
Continuous duty

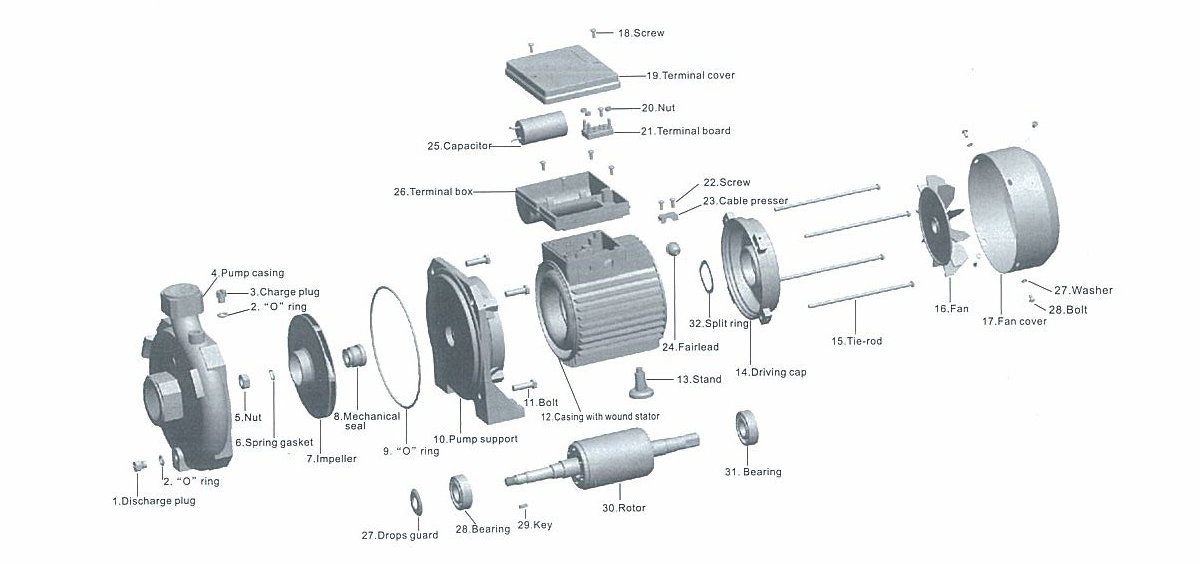

Explode drawing

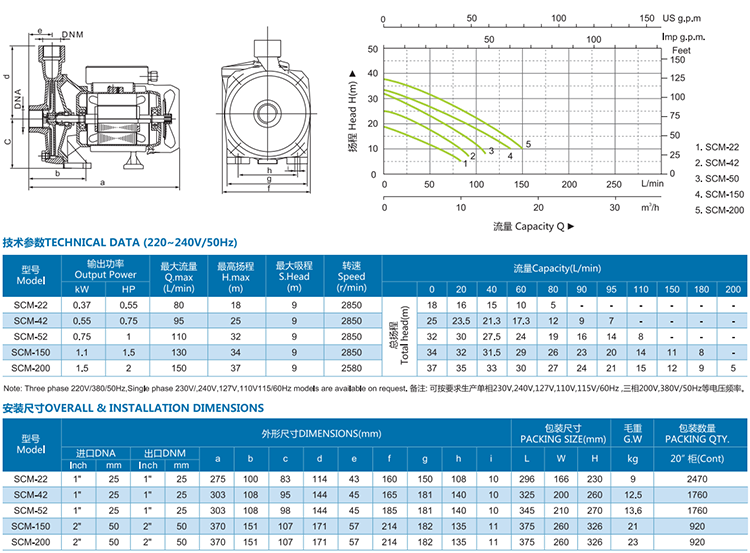

Technical data
