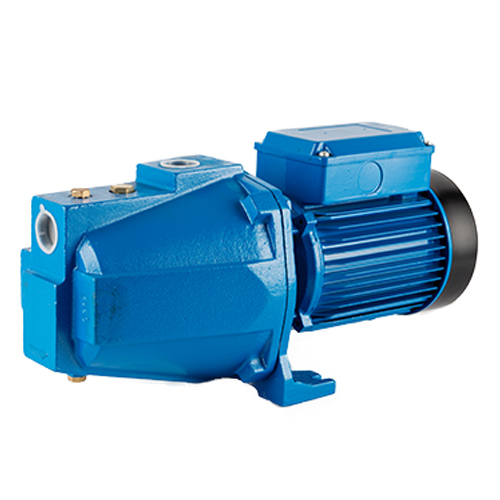

JNG series self-priming pump

PUMP

Single Phase	Heavy Duty Continuous Work
Pump body	Cast Iron
Impeller	Brass/Stainless Steel/Techno-polymer(P.P.O)

Mechanical Seal

SIC/Ceramic/Graphite

MOTOR

Motor Housing	Aluminum Alloy
Shaft	Carbon steel/stainless steel
Insulation	ClassB/Class F
Protection	IP44/IP54
Cooling	External Ventilation

Online Inquiry PDF Download

PRODUCT DESCRIPTION VIDEO

Application

JNG series cast iron self-priming pumps are mainly used to transfer clean water and other liquid which is similar with water character.It is suitable for industrial and urban water supply,pressurre rise to high building,garden irrigating,long distance water transfer and relevant equipment ect

Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

Dimensions

* The normal power standard is 220v 50hz single phase & Three phase 220,380V50hz.

Single phase 230v,240v,127v,110v,115v/60hz models are available on request.

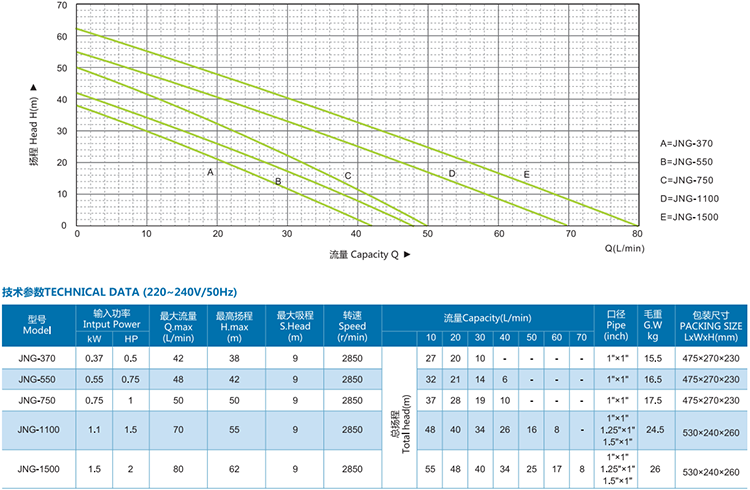

Technical data
