JS Series Stainless-Steel Self-Priming Pump,Self-Priming jet Pump
Self-Priming jet Pump

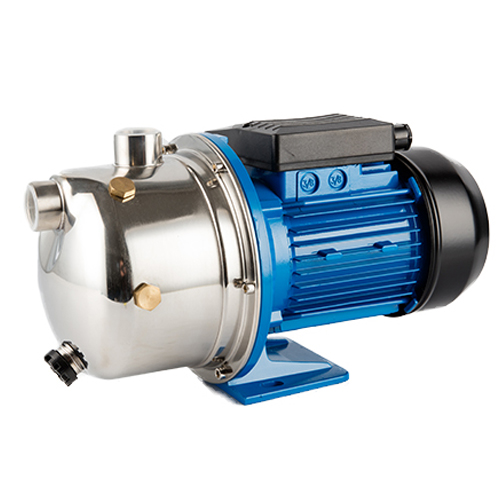

JS Series Stainless-Steel Self-Priming Pump

PUMP
Single Phase Heavy Duty Continuous Work
Pump body Stainless steel
Impeller Brass/Stainless Steel/Techno-polymer(P.P.O)
Mechanical Seal SIC/Ceramic/Graphite
MOTOR
Motor Housing: Aluminum Alloy Aluminum Alloy
Shaft Carbon steel/stainless steel
Insulation ClassB/Class F
Protection IP44/IP54
Cooling External Ventilation
PRODUCT DESCRIPTION VIDEO
Application
JS series stainless steel self-priming pumps are equipped with waterproof plug&switch,widely used in domestic and civil area.It is suitable for water suoolying in domestic installations,water intake from well,small-scale agriculture watering,garden and dountain water supplying and also can be assembled as a pump station for water supplying automatically.

Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

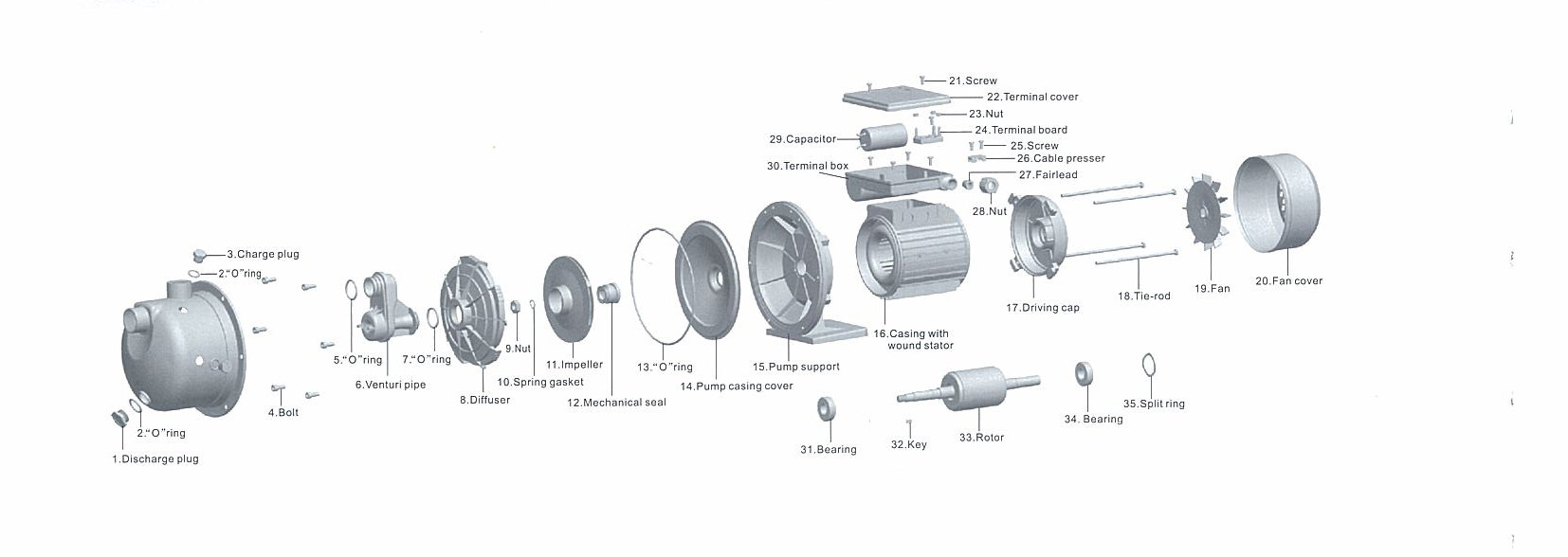

Explode drawing

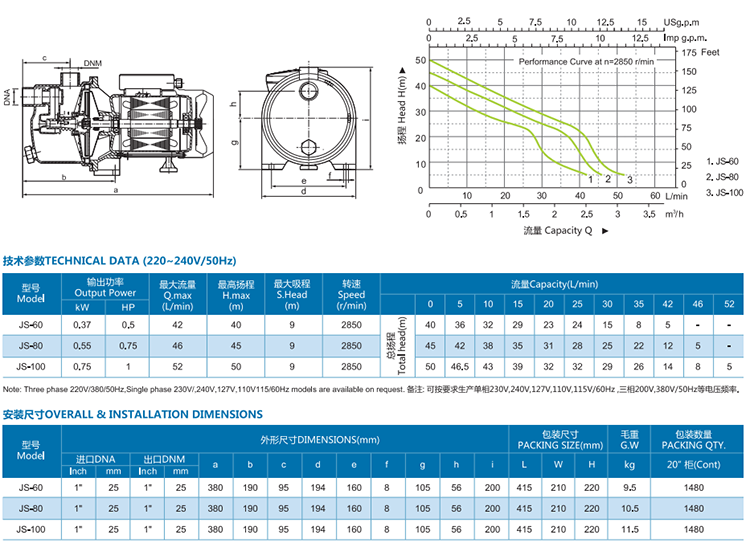

Technical and dimensions data
