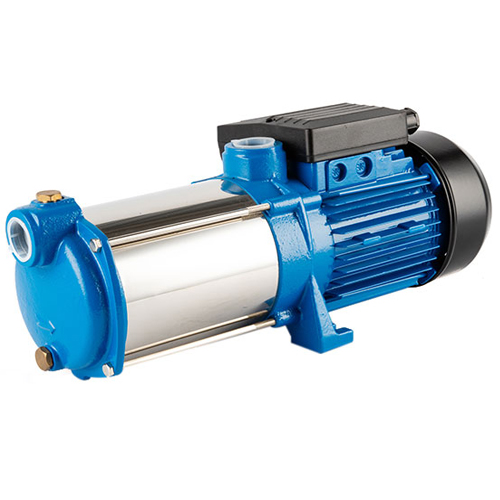

MH series horizontal multi-stage centrifugal pump

PUMP

Single Phase	Heavy Duty Continuous Work
Pump body	Cast Iron/stainless steel
Impeller	stainless steel/PPO

Mechanical Seal

SIC/Ceramic/Graphite

MOTOR

Motor Housing	Aluminum Alloy
Shaft	Carbon steel/stainless steel
Insulation	ClassB/Class F
Protection	IP44/IP54
Cooling	External Ventilation

Online Inquiry PDF Download

PRODUCT DESCRIPTION VIDEO

Application

MH series are designed to work withclean water in domestic applications ,irrigation,industry,etc.the pump body is made of stainless steel,so that they are of beautiful design.At the same time,they have the adcantage of low noise,easy operation and reliable performance.

Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

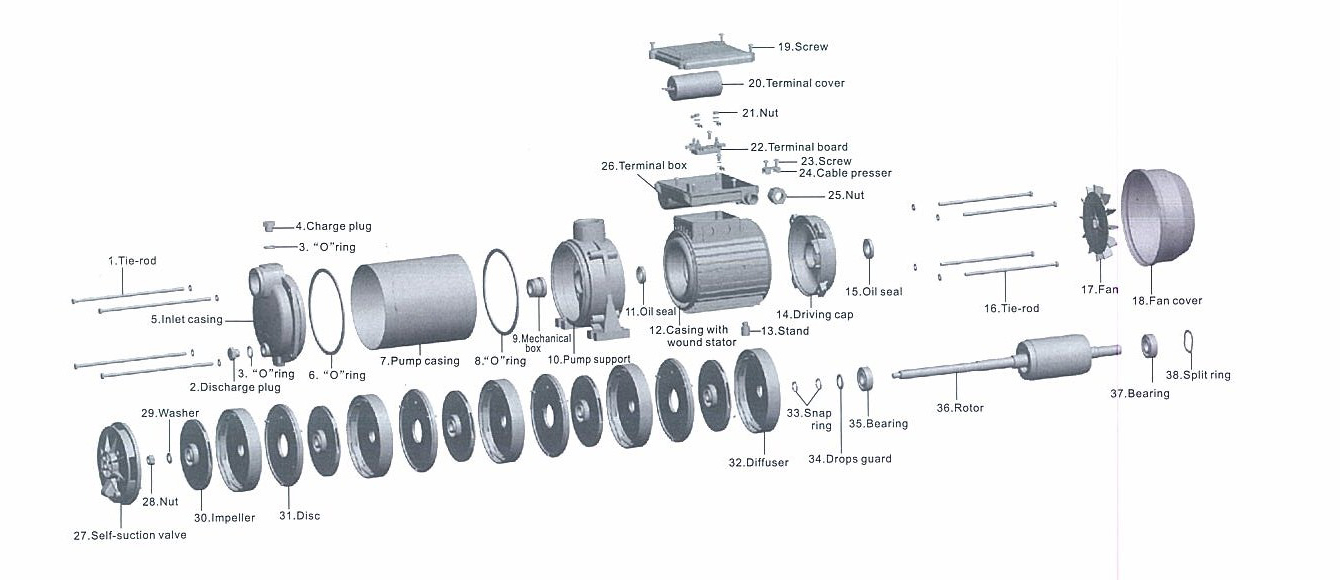

Explode drawing

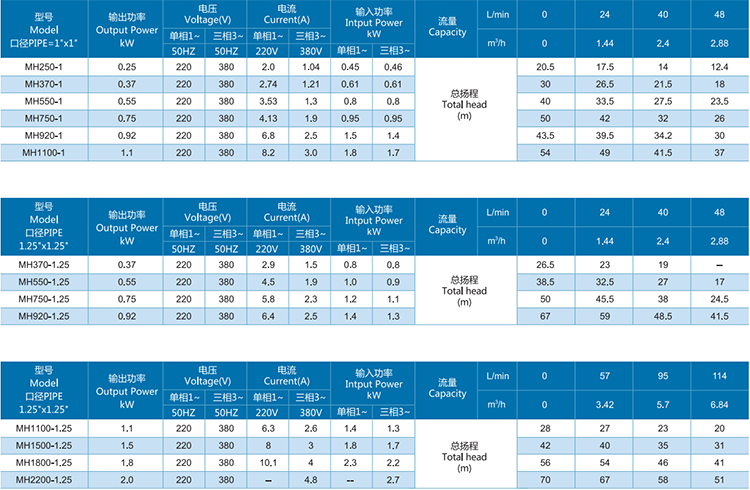

Technical data
