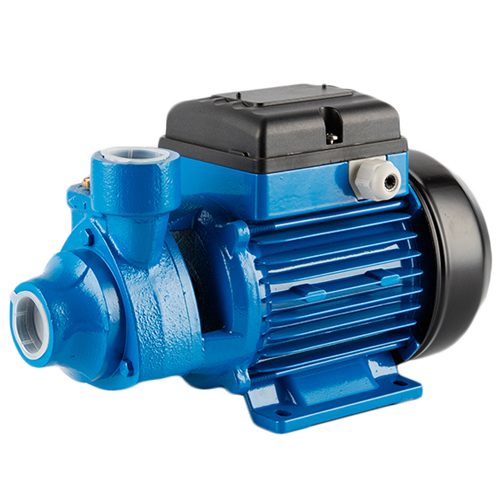

PM series peripheral pump

These pump are with peripheral impeller impeller and small power, but they can supply high pressure with particularly steady operating curves. In order to ensure the pump function correctly, please use pumps to transfer clean water or non-aggressive liquids only, without sand or other solid impurities. They are suitable for domestic water supply, rise pressure of pipeline system and pump water automatically by high pressure tank and water unit.

Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

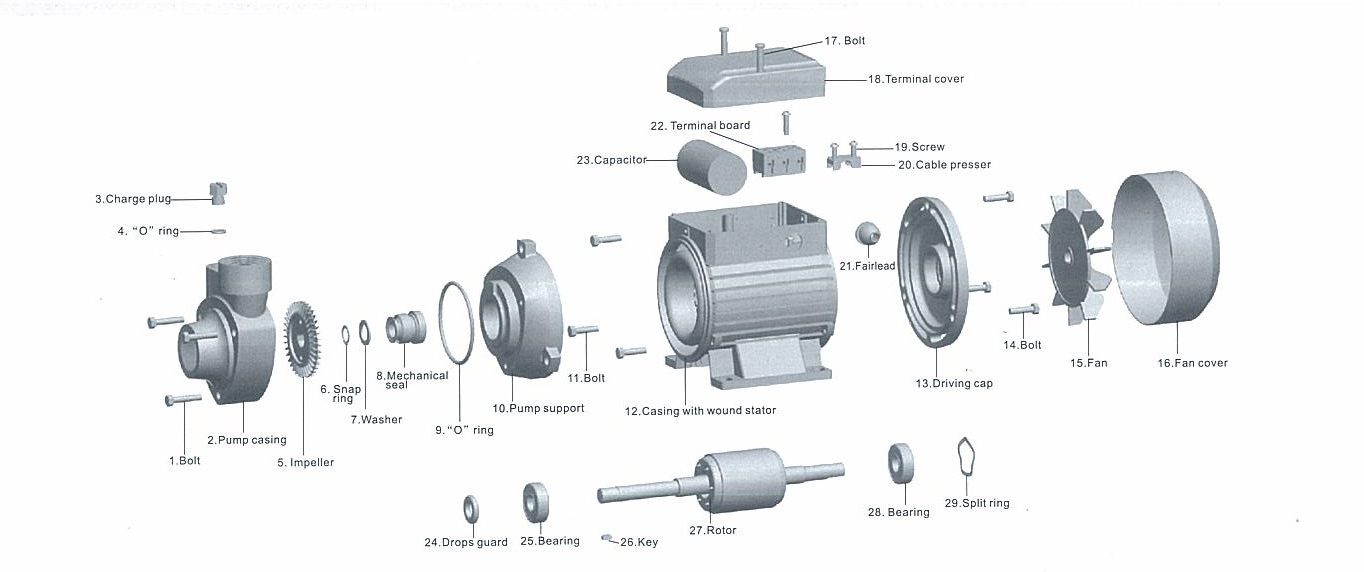

Explode drawing

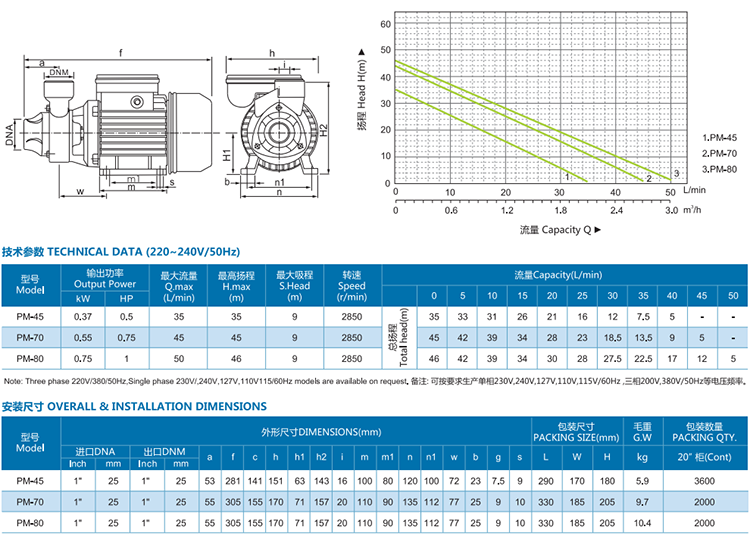

Technical data
