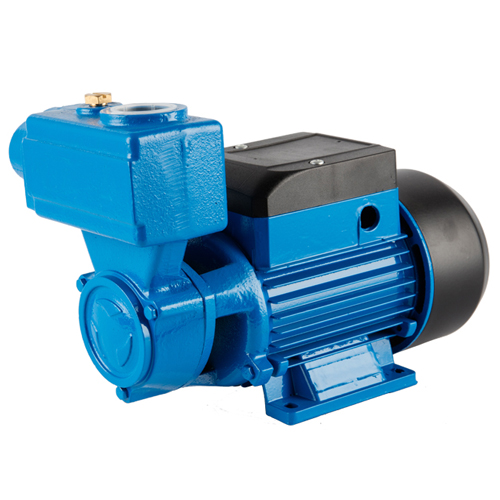

TPS series self priming peripheral water pump

With a small tank over its impeller,TPS series pumps are a good solution for selfpriming.And it is also with peripheral impeller and gain high pressure relative and its curves are steep particularly.The wide range of TPS series meets the most different operating requirements such as:Supply water from well,pool and so on,increase the water pressure in the pipe,garden sprinkling or clean washing.These pumps should be installed in a covered area,protected against the weather.

Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

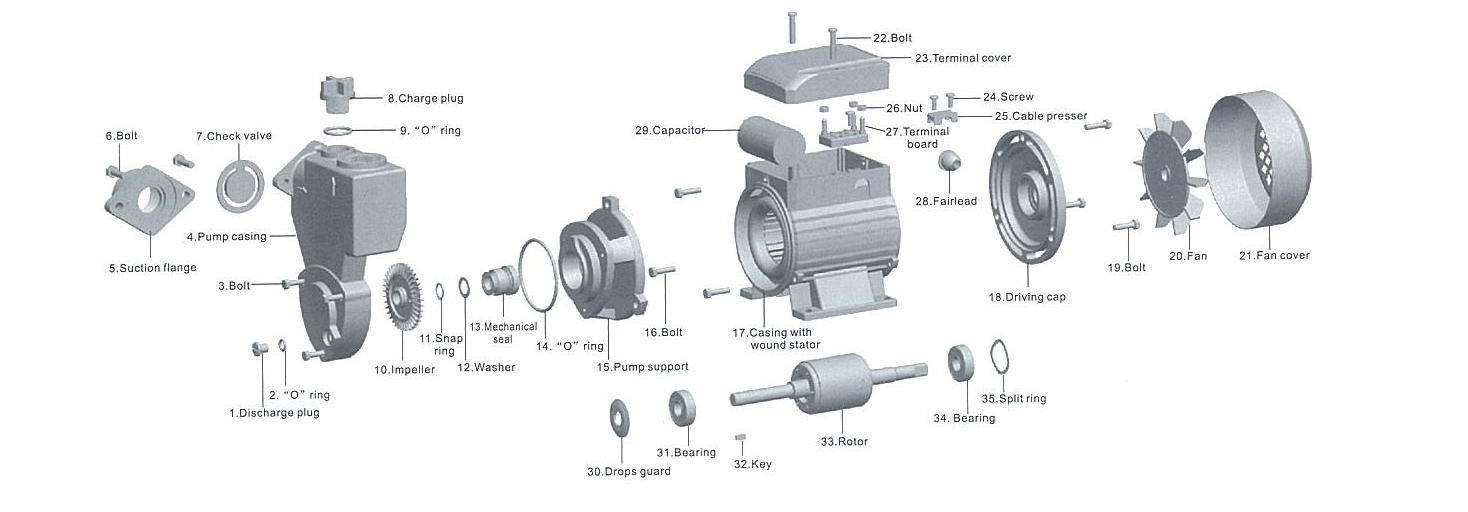

Explode drawing

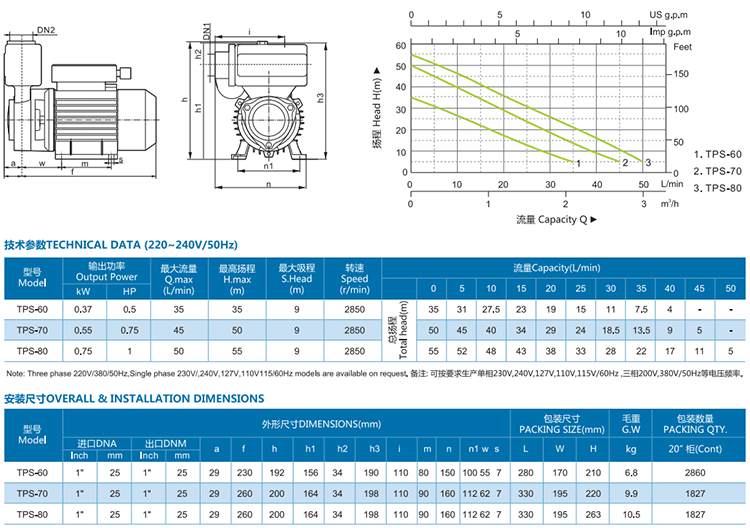

Technical data
