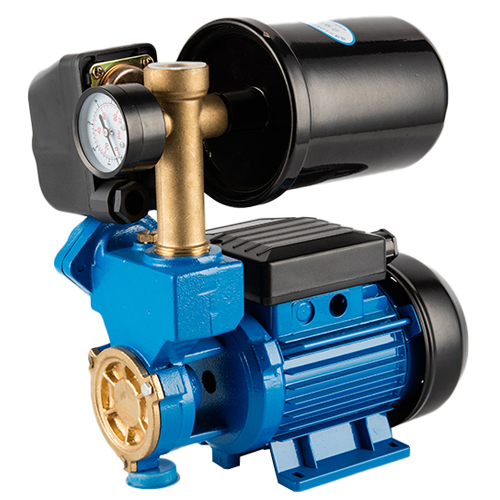

WZ series self priming peripheral water pump

PUMP

Single Phase	Heavy Duty Continuous Work
Pump body	Cast Iron
Impeller	Brass/Stainless Steel

Mechanical Seal

SIC/Ceramic/Graphite

MOTOR

Motor Housing	Aluminum Alloy
Shaft	Carbon steel/stainless steel
Insulation	ClassB/Class F
Protection	IP44/IP54
Cooling	External Ventilation

Online Inquiry PDF Download

PRODUCT DESCRIPTION VIDEO

Application

WZ series self-priming peripheral electric pumps are suitable to tansfer clean water.It is consisted of a water pump,a tank,a pressure switch and relevant accessory.It is mainly used in domestic water supply and pressure rise from well or pond.

Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

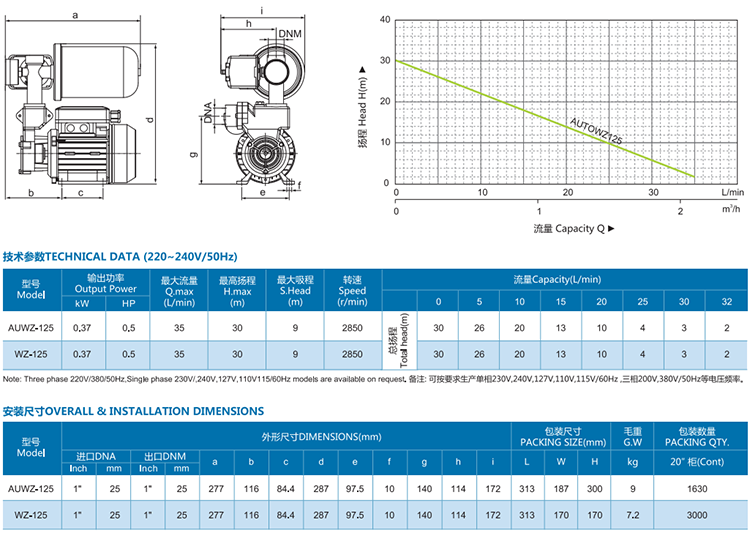

Dimensions
* The normal power standard is 220v 50hz single phase & Three phase 220,380V50hz.

Single phase 230v,240v,127v,110v,115v/60hz models are available on request.

Technical data
