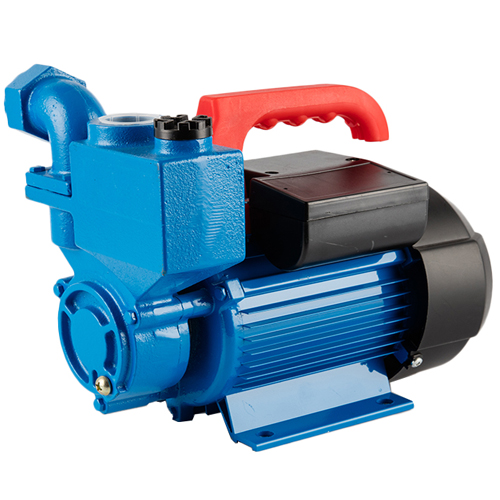

ZDB series peripheral pump

PUMP

Single Phase	Heavy Duty Continuous Work
Pump body	Cast Iron
Impeller	Brass/Stainless Steel

Mechanical Seal

SIC/Ceramic/Graphite

MOTOR

Motor Housing	Aluminum Alloy
Shaft	Carbon steel/stainless steel
Insulation	ClassB/Class F
Protection	IP44/IP54
Cooling	External Ventilation

Online Inquiry PDF Download

PRODUCT DESCRIPTION VIDEO

Application

ZDB series peripheral pumps are mainly used to tansfer clean water or other liquid which is similar with water character.It is suitable for domestic water supply,automatic water sprinkler system,small air conditioner system or supporting equipment etc.

Operation Conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

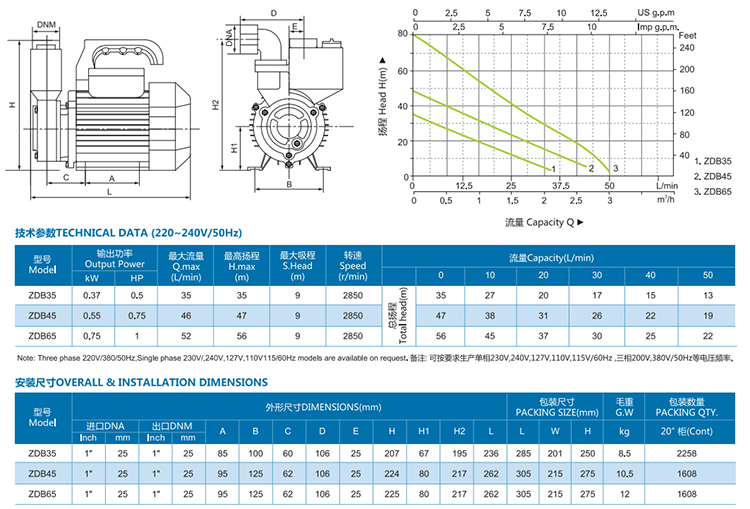

Dimensions

* The normal power standard is 220v 50hz single phase & Three phase 220,380V50hz.

Single phase 230v,240v,127v,110v,115v/60hz models are available on request.

Technical data
